One of the innovative developments by founder Robert Williamson is the Quick Change Ink Pump System. Cut your downtime dramatically with this easy to change ink pump system.

Currently available pumps require the need for tools and an experienced repair technician to perform the replacement of a pump. The design of the Quick Change Diaphragm Pump System enables the user  too quickly, and without the aid of tools, replace a worn out pump with minimum machine downtime or labor hours. This would allow the user to efficiently schedule the repair of the suspect pump.

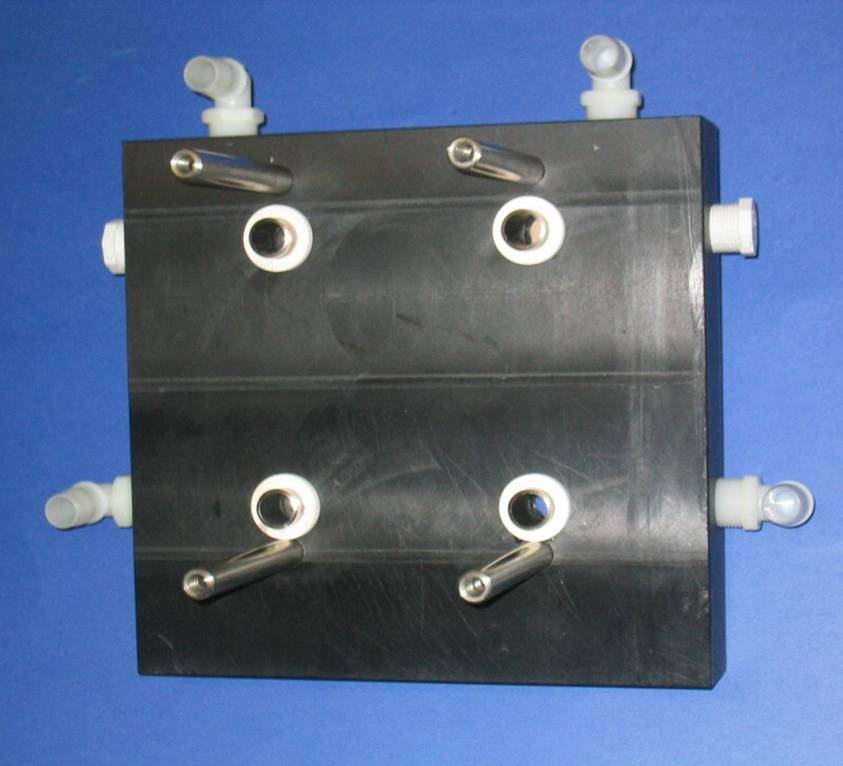

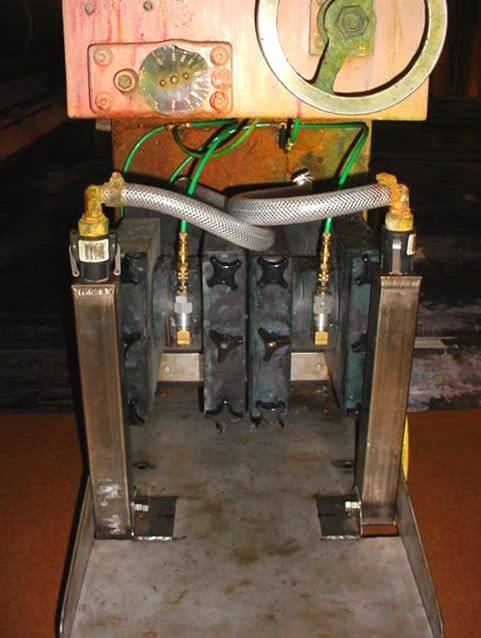

The system can be expanded to allow the use of multiple pumps on a single base. The pump is attached to a base which has internal flow passage ways that allow the use one pump performing the task of others. The systems base has internal flow passage ways that are designed in such a manner that it controls the flow of liquid, not the individual pump. The base design allows adaptation of this system to any applications that requires the flow of liquid to complete it usefulness. The base is also adaptable to allow for all types of sensor, and devices that could improve the systems usefulness. My new designed pump system allows the user to reduce inventory of different pumps and standardize. This results in less spare parts inventory for the end user. The pump itself comprises a standard manufactured pump and parts and replacing its original manifolds with my special designed manifolds to redirect it’s input and output flow characteristics.

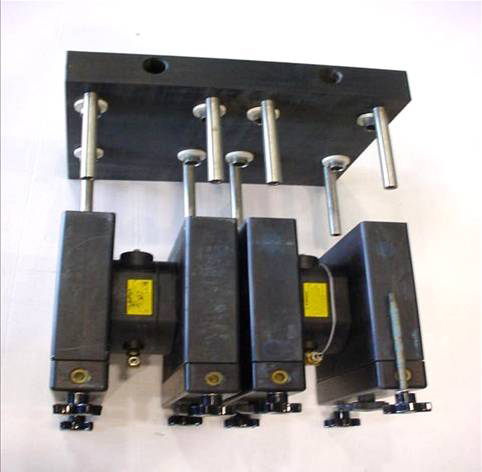

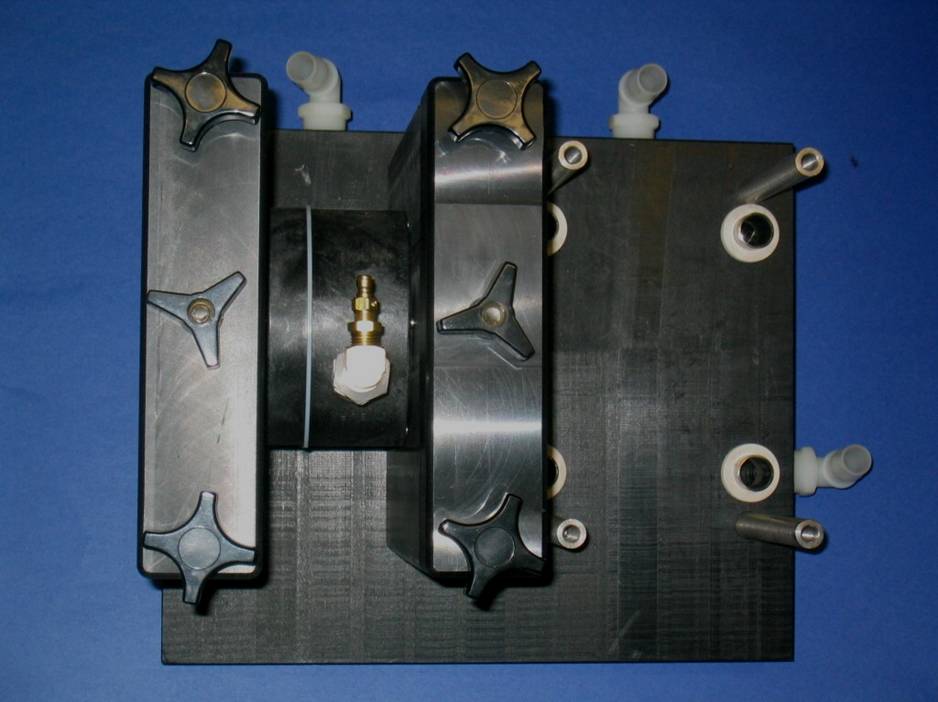

QuickFab designed pump manifolds allow the pump to be removed or replaced on its base without the use of any tools. The pump is coupled to its base by a system of anchoring studs. The studs serve as guides that ensure proper alignment and retain the sealing mechanisms for the passageways, which allow flow of liquid from the redesigned pump to its base. The redesigned pump’s intake and exhaust valving is made accessible for easy maintenance and replacement without tools, or disassembly of the redesigned pump by an external retention device. Our new pump manifolds are designed in such a way that all the valving, either intake or exhaust is installed the same as to reduce the possibility of a mistake in their installation.

Patent Pending
