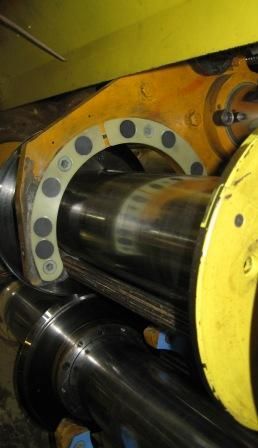

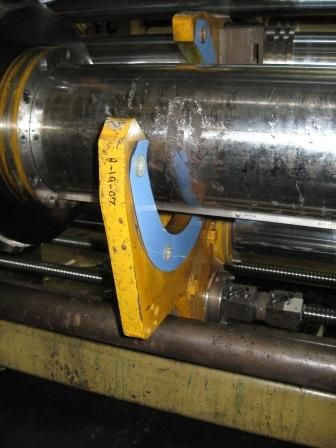

Reduce your carbon button maintenance with our easy to change Carbon Shoe System.
You’ll quickly realize the advantage to our system because it...
...increases the wear surfaces by at least 375% more than the OEM’s.
...can be adjusted in a few minutes rather than several hours.

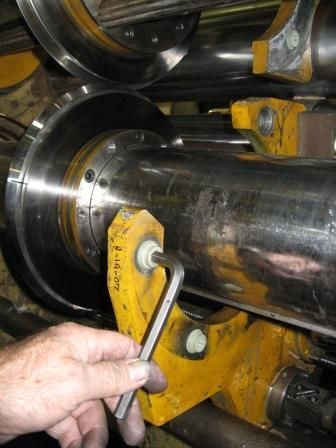

...is easy to install and does not require the use of complicated tools.
...means once heads are separated, no tools are required to shim the shoes.
...reduces machine downtime and maintenance costs from less frequent changes in wear surfaces.
...utilizes the original OEM machine without any modifications.
...provides extended wear life of plates.
...provides extended wear life of tooling.
...has shims that are color coded for easy identification.
...has no metal surfaces unlike the OEM’s that cause damage to your expensive contact surfaces.
Order information

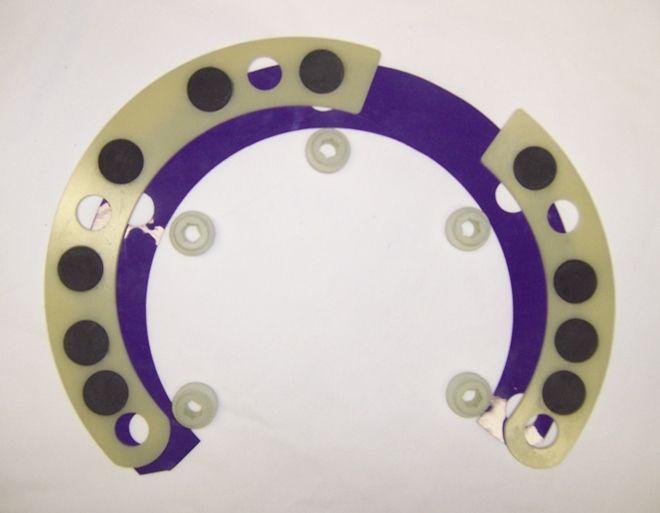

Your Carbon Shoe Conversion Set includes:
- 4 packs of the Large Diameter Shoe Sets
- 10 packs of the Small Diameter Shoe Sets
- 16 Large Diameter Shims (4 of each thickness: .010, .012, .015, .020)
- 40 Small Diameter Shims (10 of each thickness: .010, .012, .015, .020)
- 140 Custom Set Screws
Carbon Shoe parts are also offered individually.
Ward 50 - 66” Carbon Nut
Our 50”- 66” Carbon Nut is an exact replacement for your OEM carbon nut. However, ours has no metal surfaces that cause damage to your expensive contact surfaces once the carbon wears.
Carbon Shoe Systems
CSS100 Complete Carbon Shoe System Conversion Set
CSS101 Large Diameter Shoe Set (4 Piece Set)
CSS102 Small Diameter Shoe Set (4 Piece Set)
CSS150 Custom Set Screw
QFCN-50 Ward 50” Carbon Nut
