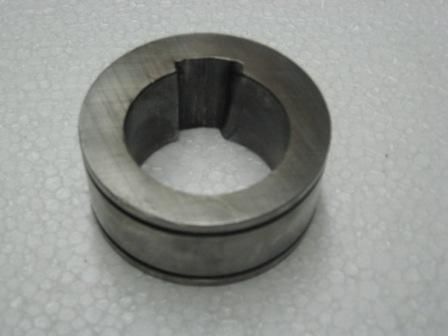

Spanker Cams with Shrink Disc
Spanker Cams for the Ward Counter Ejectors have been converted to shrink disc which eliminates the loose keyway problem on the standard OEM design. Our Spanker Cams need no modification to the Counter Ejector to install and you can reuse the spanker cam shaft most of the time.

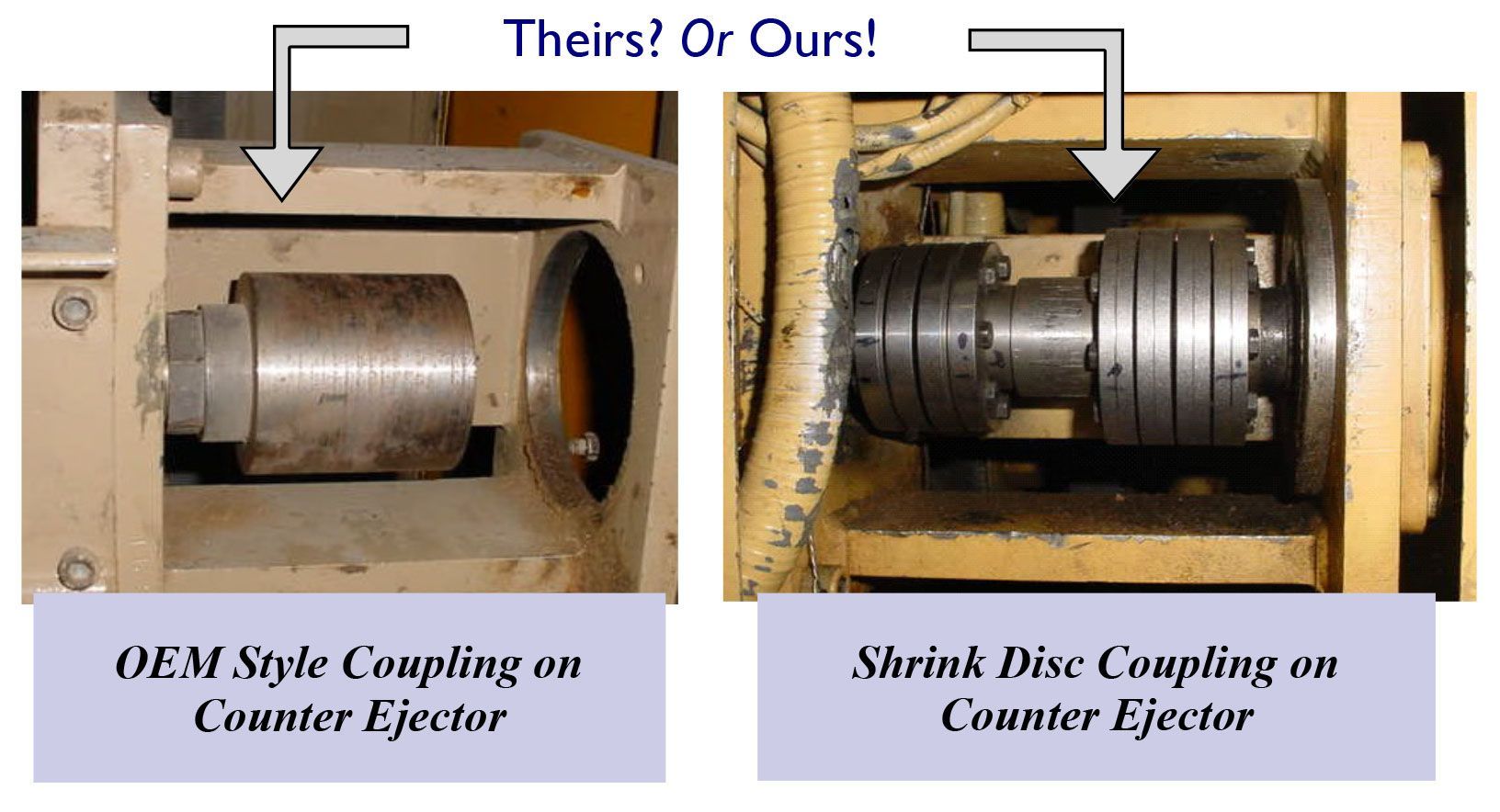

Shrink Disc Coupling
Ward Counter Ejector original style couplings, used in all three positions can be converted to our multiple Shrink Disc coupling. Our Shrink Disc Coupling, machined from 4140 Steel, holds on most damaged shafts without having to replace the pinion shaft or gearbox due to the original style coupling slipping and scarring their surfaces.

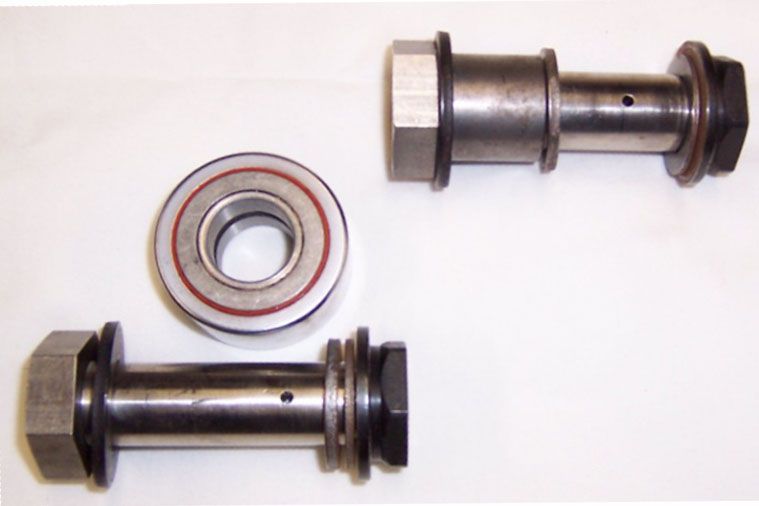

Quick Change Cam Follower
If you’ve ever changed a Cam Follower, you know it is a real job. Everything gets torn apart in breakdown mode and it usually takes 2 men a half a day to get the machine back up and running. The beauty of our Quick Change Cam Follower is that this process is much easier and downtime is reduced significantly. Only one person is needed to get into the machine, block up the carriage assembly, cut the old cam follower in half to bring it out in 2 pieces, and then put ours back in. Tighten it up and you’re ready to go in under an hour. This is the perfect item to have on hand for a quick fix to a common breakdown. Be sure to order one of each, the adjustable and non adjustable, so you’re not in a bind when yours unexpectedly breaks!

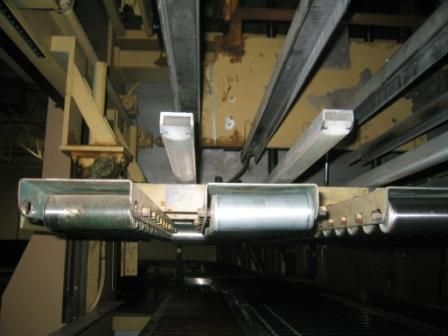

Thines and Hold Downs for Ward Model 41, 42, and 44 Counter Ejectors
Reduced Downtime, Easier Installation, Longer Lasting, Lower C

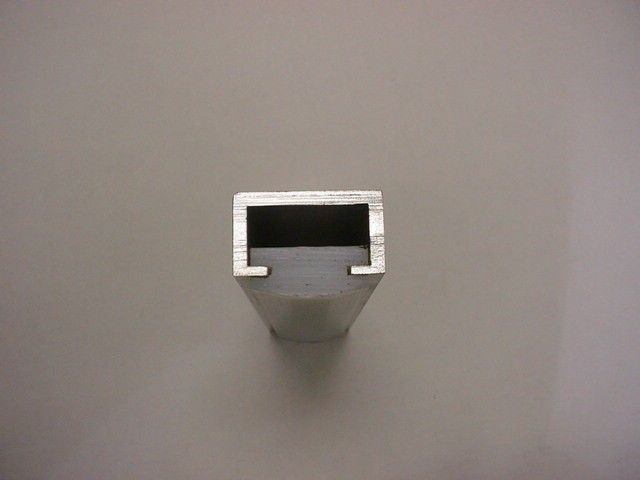

Our Hold Downs are extruded from 6061 aluminum with extra legs to hold the wear strip and provide additional reinforcement. Hold Downs come with Wear Strips installed.

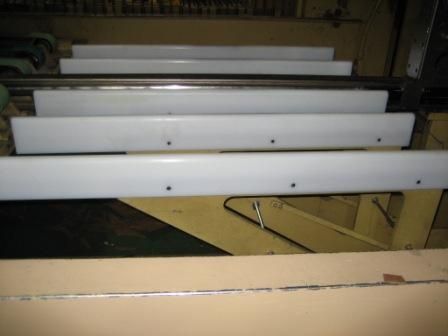

Elevator Top Wear Strip Replacements for Ward Counter Ejector
Elevator Top Wear Strips install with roll pins through holes that already exist in most machines. If your model does not have them they can be drilled with a small right angle drill. Ours are made extra thick for added durability. The side legs are longer to provide extra reinforcement for the length protruding off of the end of the elevator arm. This extra durability also means they are not easily damaged by jam-ups.

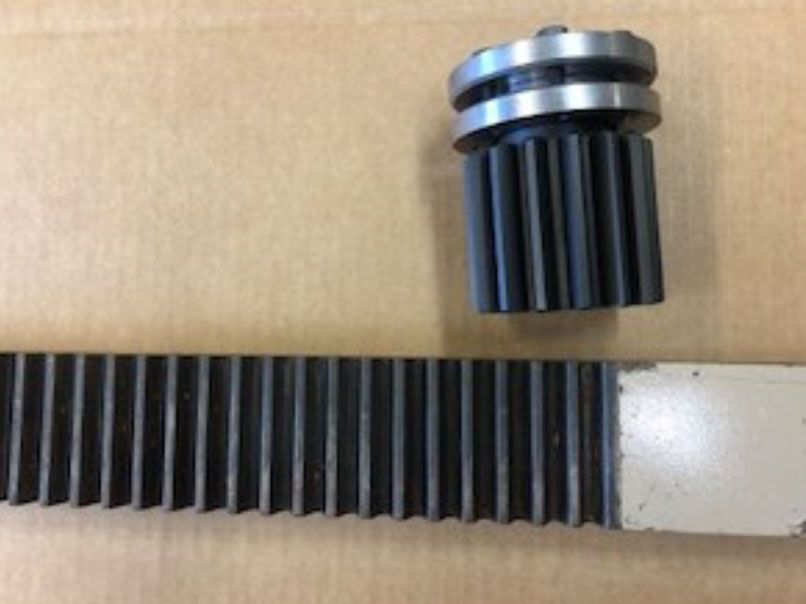

Counter Ejector Elevator Rack Gear and Pinion Gear
The OEM has an older style, newer style, a left, and a right. Our Counter Ejector Elevator Rack Gears are drilled universal so they fit either side. This makes ours much more convenient while still being offered at a competitive price. We can also provide new Pinion Gears individually or as a set with the rack gears.

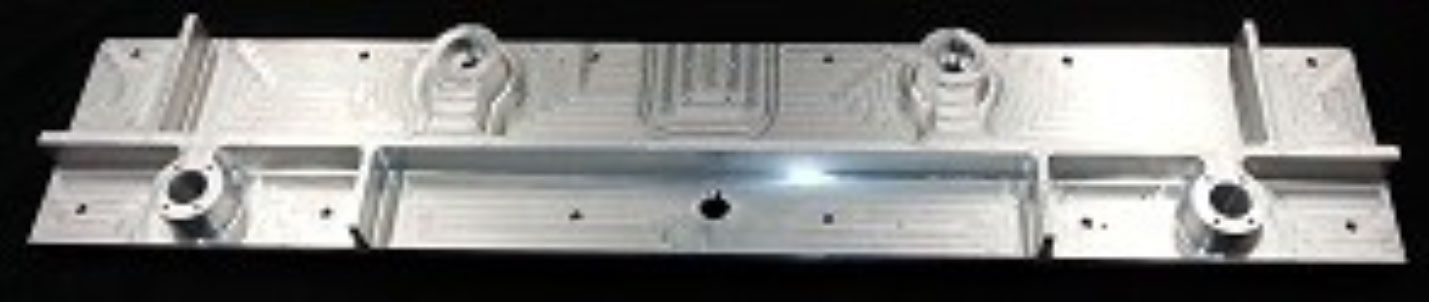

Counter Ejector—Crosstie Holddown

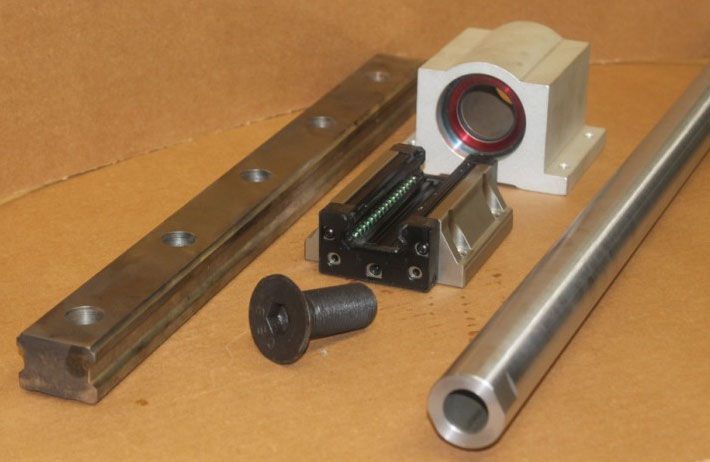

We offer the Crosstie Holddown as well as the LM Guide Assembly for models 42 and 44. The Holddown is machined from a solid piece of 6061 aluminum billet with modifications that provide a better fit on the Thompson shaft.

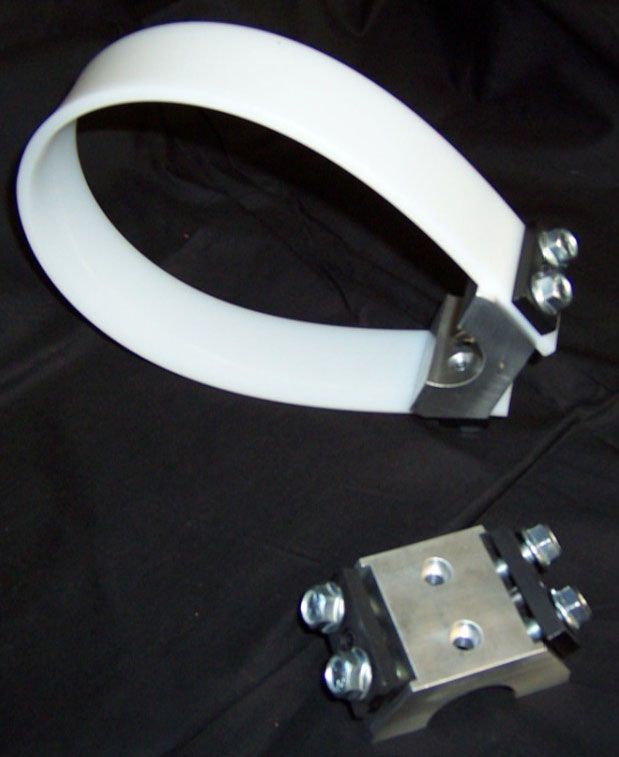

Counter Ejector Whip Shaft Bracket
Our brackets are CNC machined from 6061 aluminum with hardened threaded inserts. We have also added steel support straps to prevent the whips from distorting and to keep the whips in their proper place. With these straps, your whips are kept in correct alignment and jams are prevented. Our straps alone can be used with OEM Brackets and offer the same benefits of our new bracket. Then, when your OEM bracket becomes stripped and worn, just order our bracket for better wear in the future.
Counter Ejector Whips
We also offer whips that are OEM comparable, but usually at a lower cost. Our whips come with 3 holes to be used with our better whip shaft brackets, but again, can still be used with the OEM brackets.

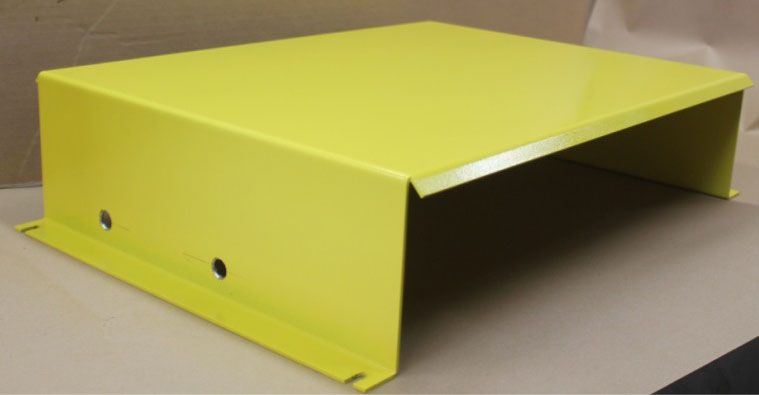

Delivery Belt Guard
If you order our Delivery Belt Guard, you will find that ours are made from a heavier gauge metal than others on the market. This provides more rigidity and a longer life as well as better support for the belts yet they are still available at a competitive price.

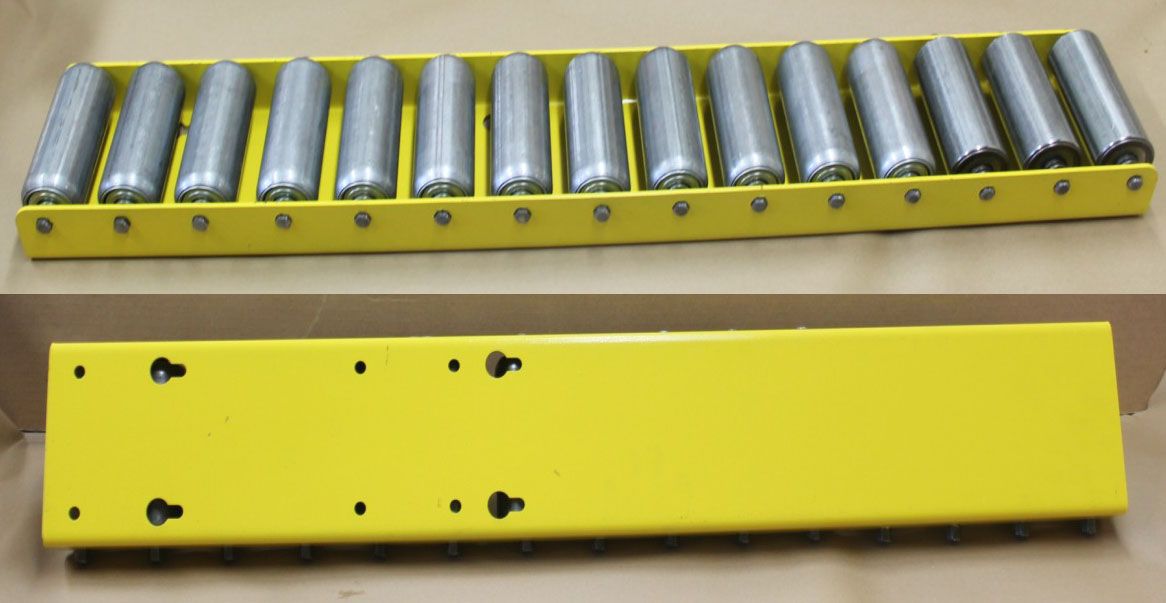

Holddown Conveyer
We offer the 5” Holddown Conveyer which includes a heavy duty frame with all new rollers and axles. They are painted yellow and come ready to install. We also offer all other rollers that are utilized in the conveyor section. We encourage you to compare our prices and quality to your current supplier.
Spanker Cams with Shrink Disc
CE-162001 Shrink Disk Spanker Cam for Ward Counter Ejector
CE-K161699 Spanker Cam Shaft for Ward Counter Ejector
CE-A39923 Bearing for Spanker Cam for Ward Counter Ejector
CE-G161698 Spanker Link (Arm)
CE-E161992 Clevis Pin
Shrink Disc Coupling
CE-F227777 Shrink Disk Coupling for Ward Counter Ejector (249451)
Quick Change Cam Follower
QCCF001 Quick Change Cam Follower (Eccentric)
QCCF002 Quick Change Cam Follower (Non-Eccentric)
Thines and Hold Downs for Ward Model 41, 42, and 44 Counter Ejectors
CEF001 Ward Model 42 Center Thine- 52-3/4" 162052/360002
CEF002 Ward Model 42 Center Hold Down - 61-3/4" 162053 or 227372
CEF004 Ward Model 42 Outer Thine - 51-1/4" 162051/360004
CEF005 Ward Model 42 Outer Hold Down 59-1/2" 162054 or 227373
CEF-K161815 Ward Model 44 Hold Down - 76-1/2" (228659)
CEF-G161811 Ward Model 44 Center Thine - 71"
CEF-G161810 Ward Model 44 Side Thine - 68"
CEF-362264 Ward Model 41 Outer Thine - 35-1/4""
CEF-362265 Ward Model 41 Center Thine - 36-3/4"
CEF-362266 Ward Model 41 Outer Hold Down - 43"
CEF-362267 Ward Model 41 Center Hold Down - 45"
Elevator Top Wear Strip Replacements for Ward Counter Ejector
WES-42 Elevator Strip (Ward #228569 fits 42 and 425)
WES-44 Elevator Strip (Ward #228690 fits 44 and 445)
Counter Ejector Elevator Rack Gear and Pinion Gear
CE-G161788 Counter Ejector Carriage/Elevator Pinion Gear w/ Ringfeder 42/44
CE-477849 Counter Ejector Carriage/Elevator Pinion Gear w/ Ringfeder 42/44
CE-G161727 Counter Ejector Vertical Carriage Rack Gear 42/44
CE-362306 Counter Ejector Vertical Carriage Rack Gear 41
CE-G162055 Counter Ejector Horizontal Carriage Rack Gear 42/44 (362304 - Modified)
CE-362304 Counter Ejector Horizontal Carriage Rack Gear 41
CE-G161728 LM Guide Carriage Assembly 42/44
Counter Ejector—Crosstie Holddown
CE-167427 Counter Ejector - Crosstie Holddown fits 42
CE-168250 Counter Ejector - Crosstie Holddown fits 44
Counter Ejector Whip Shaft Bracket
CEWB001 Counter Ejector Whip Shaft Bracket – 361876
Counter Ejector Whips
CEW-18.5 Counter Ejector Whip - 18 1/2" Long 168653
CEW-19.5 Counter Ejector Whip - 19 1/2" Long 181838 359662
CEW-21 Counter Ejector Whip - 21" Long 178821
Delivery Belt Guard
CE-171090 Delivery Belt Guard - Model 42 & 44
Holddown Conveyer
CE-G161905 Holddown Conveyer
