What's that roller chain drive costing you in downtime, replacement parts and lost productivity due to drive failure, lubrication requirements, and unscheduled maintenance?

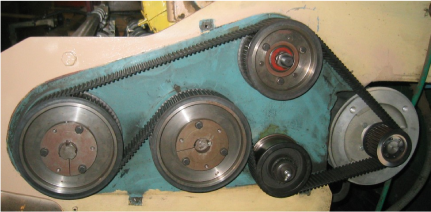

Our quiet, maintenance-free Belt Drive Conversion for Martin Stacker Beater Belt Drives is your solution.
- A typical Triple 40 Roller Chain Drive requires constant lubrication with a drip oiler which produces a puddle of oil beneath the machine. This causes safety and housekeeping issues that can be replaced with an HTD Drive Belt.
- The replacement of chains and sprockets is also a continual maintenance issue on the Chain Drive. Our HTD Drive Belt eliminates this issue because of its extended wear life. Sprockets are replaced with HTD pulleys and belts rarely need to be changed.
- Regular adjustment to chain tension is necessary on the OEM system, but is eliminated with the Belt Drive System.
- Our Drive Belt is remarkably quiet compared to a Roller Chain Drive.

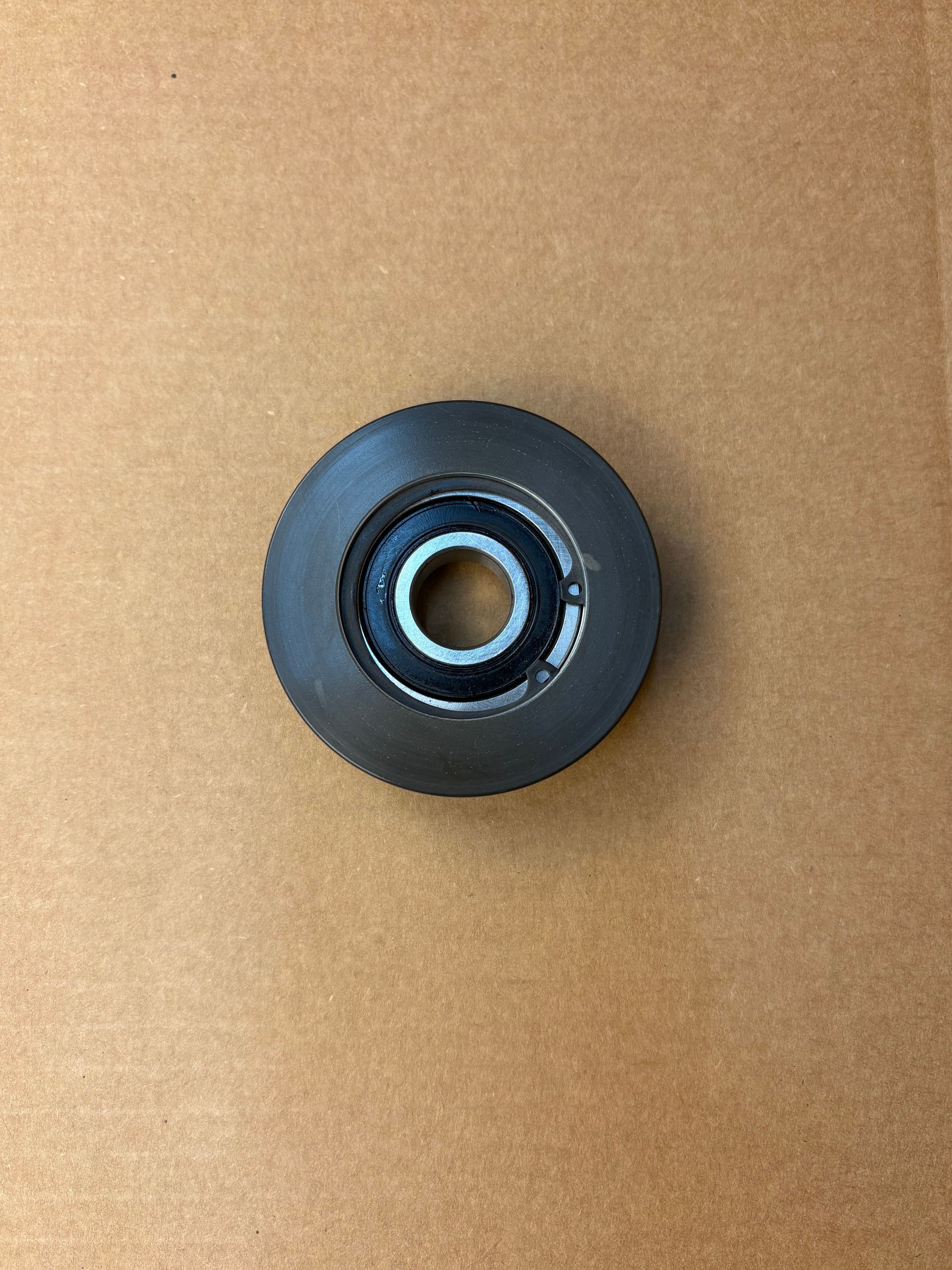

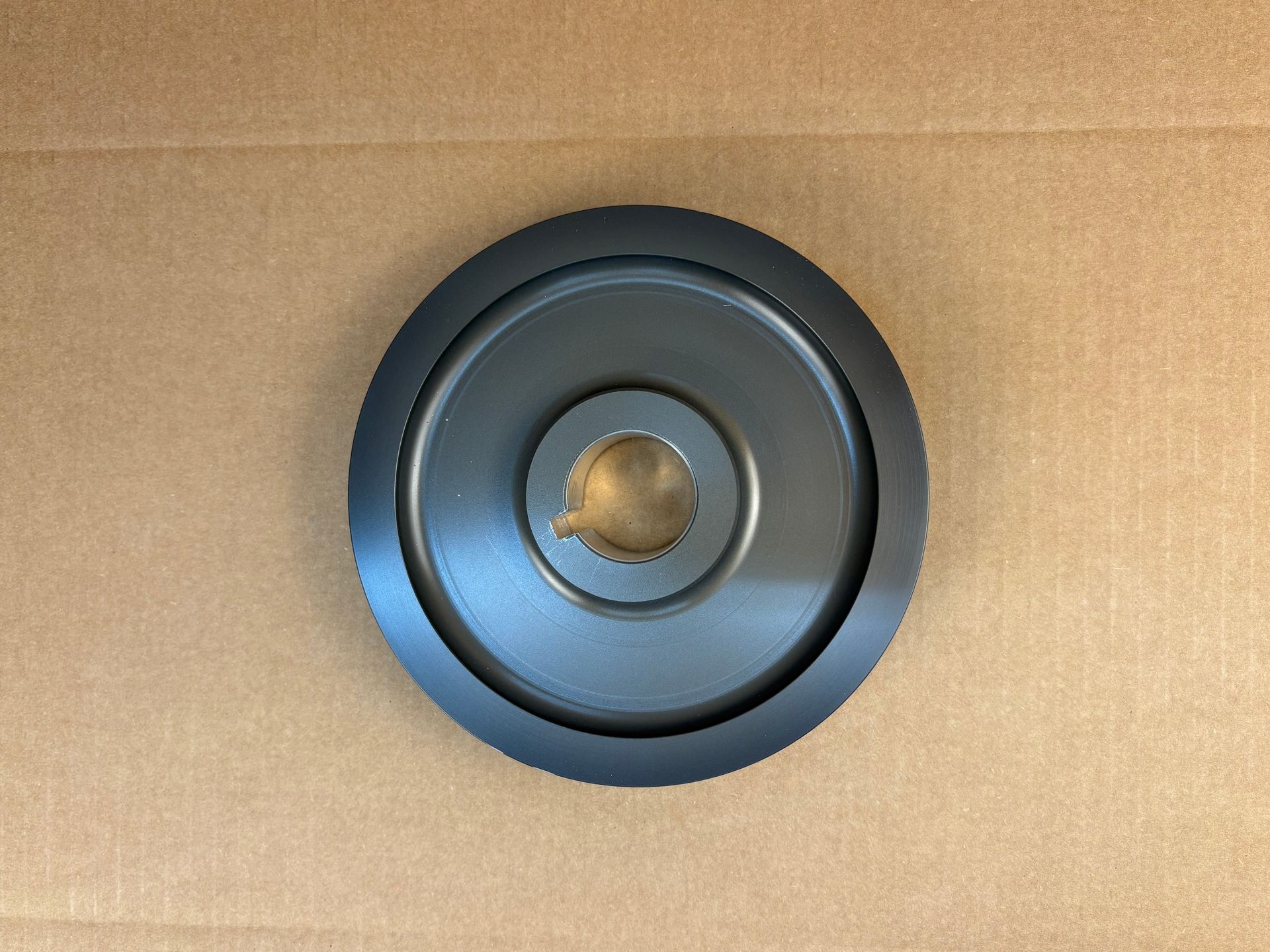

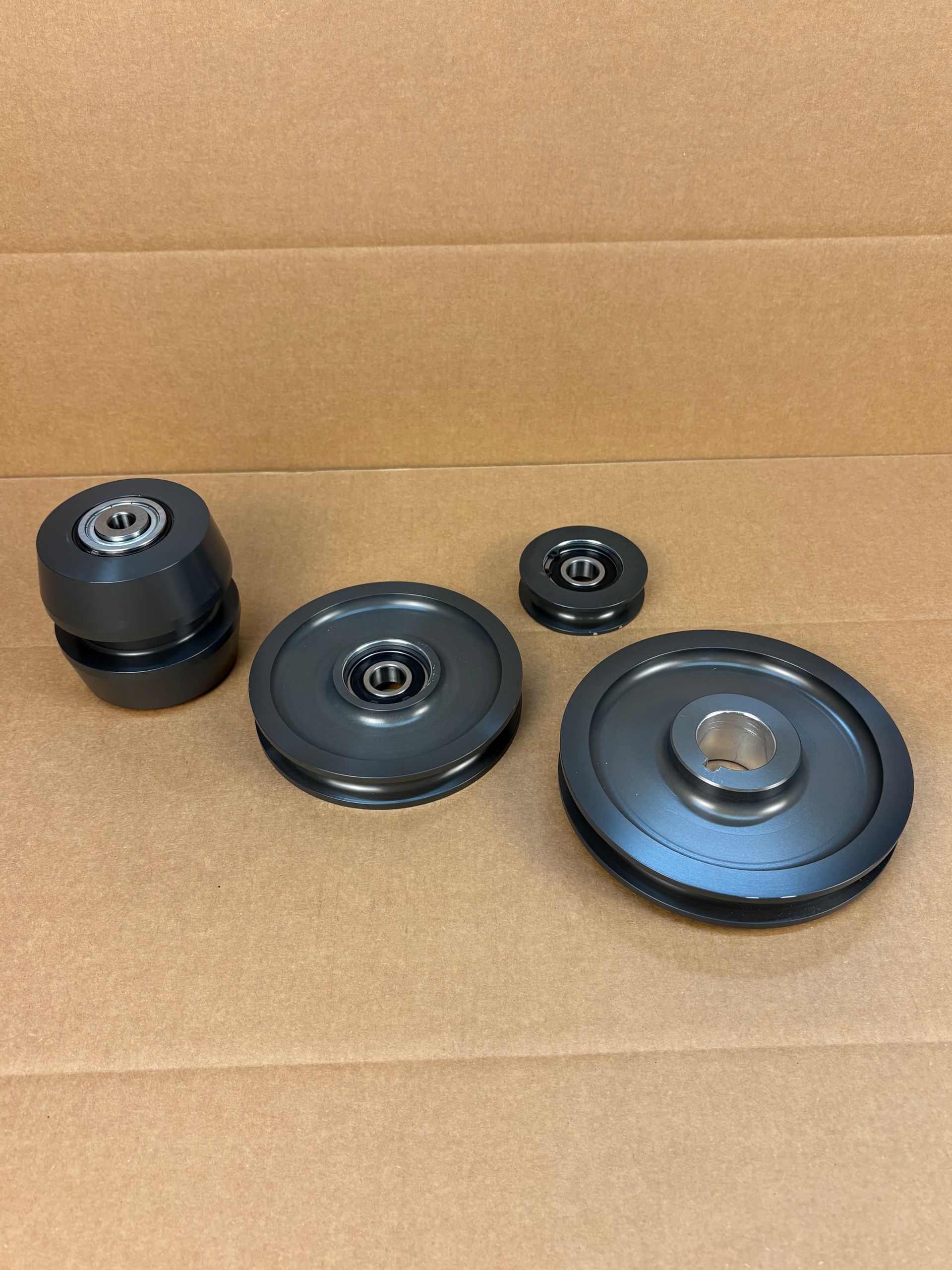

Martin Stacker LayBoy Pulleys
- Our lightweight belt drive pulleys are precision CNC machined from 6061 aluminum.
- Next, they are sent through a Hard Coat process to extend their wear life.
- Our pulleys come with bearings installed.
- All four sizes are available in standard round belt groove design. B-belt groove style pulleys are available by special order only.

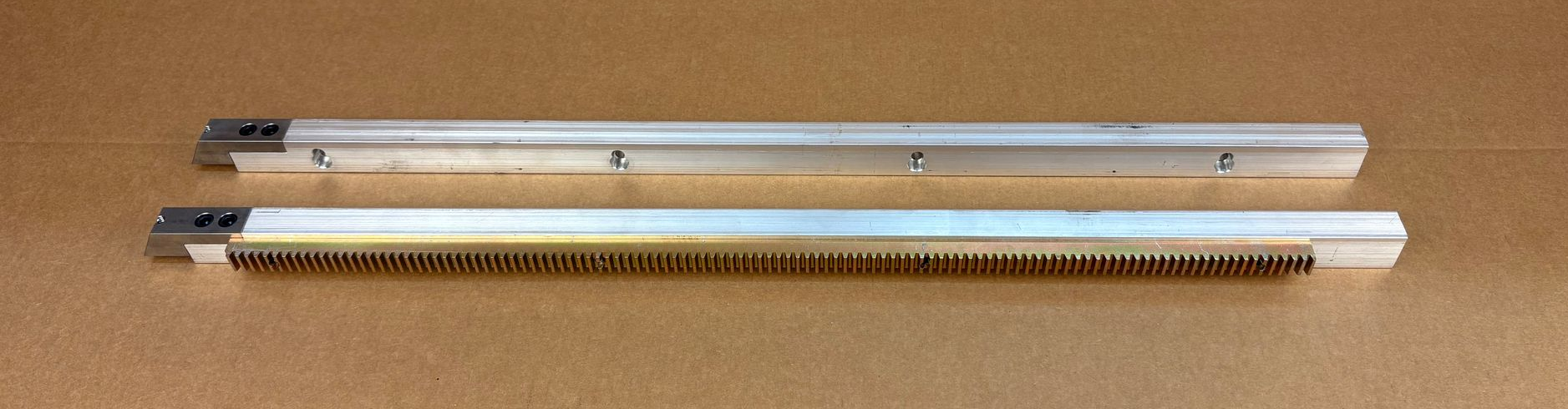

Martin Stacker Accumulator Support Bar
The QuickFab Martin Stacker Accumulator Support Bar is machined to utilize a replaceable steel tip. Our design is also double drilled so that one bar fits all three locations. Our support bars can be purchased with or without rack gears and additional replaceable steel tips can be purchased separately.
Product Information
Martin Stacker
MBDC001 Martin Stacker Poly Chain Drive Conversion
MBDC-BELT Belt for Martin Stacker Drive Conversion
Pulleys - Include Bearing Where Applicable
MSLP001 B-007949-03 Martin Stacker Drive Pulley 6-5/8" “Round” Groove – Hard Coat
MSLP001-B B-007949-03 Martin Stacker Drive Pulley 6-5/8" “B” Groove – Nickel Plate
MSLP002 B-008884-00 Martin Stacker Front Idler Pulley 5-3/4" “Round” Groove – Hard Coat
MSLP002-B B-008884-00 Martin Stacker Front Idler Pulley 5-3/4" “B” Groove – Nickel Plate
MSLP003 A-009537-00 Martin Stacker Idler Pulley 2-7/8" “Round” Groove – Hard Coat
MSLP003-B A-009537-00 Martin Stacker Idler Pulley 2-7/8" “B” Groove – Nickel Plate

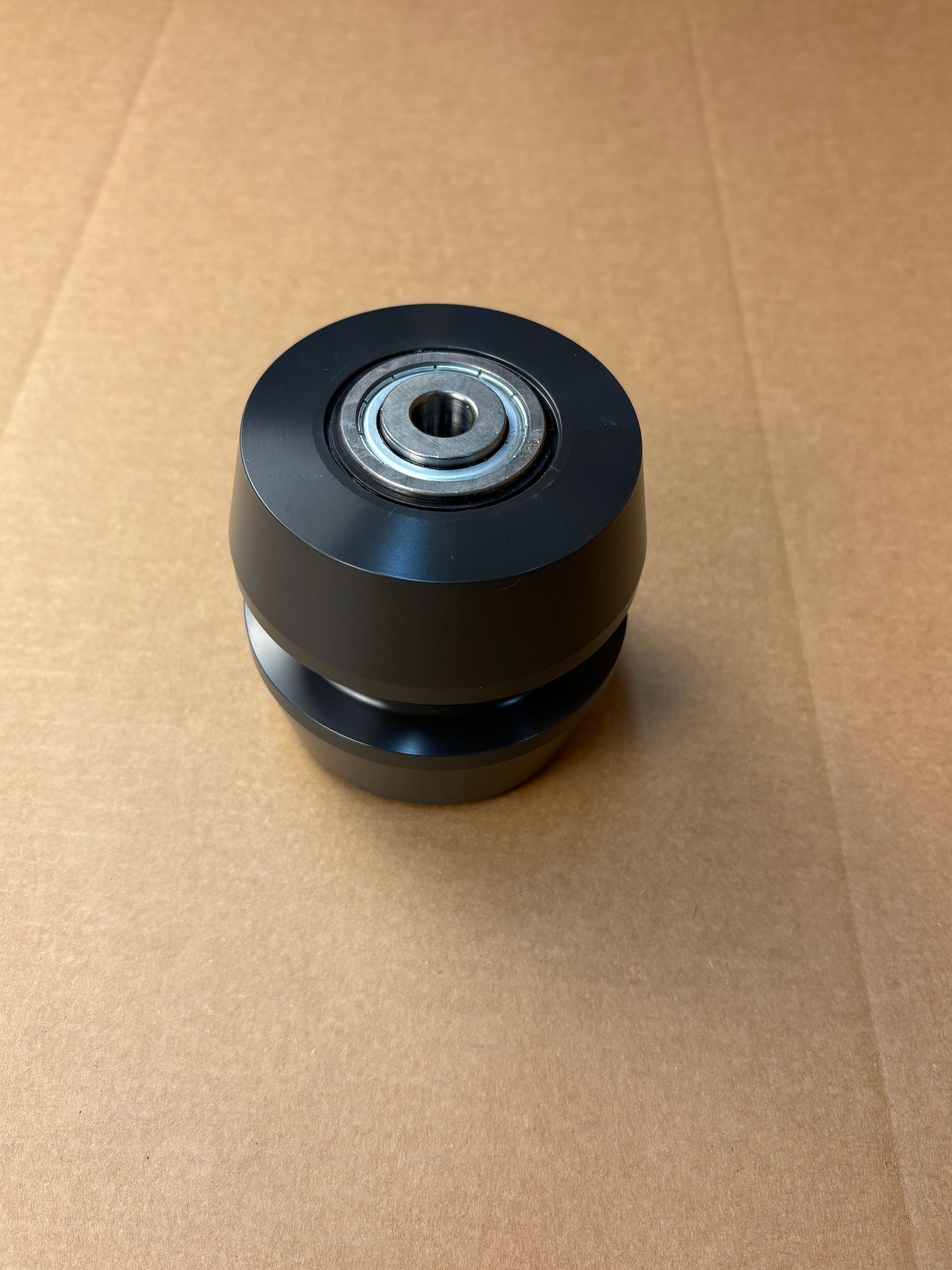

MSLP004 B-460212-00 Martin Stacker Idler Pulley Barrel “Round” Groove – Hard Coat
MSLP004-B B-460212-00 Martin Stacker Idler Pulley Barrel “B” Groove – Nickel Plate
MSLP-A9204S Axle Kit for Pulley B-460212-00 (Barrel)
MS-B019445-01 Martin Stacker Accumulator Support Bar
MS-B002394-05 Martin Stacker Accumulator Support Bar with Gear Rack (Lower)
MS-B053820-00 Martin Stacker Accumulator Support Bar with Gear Rack (Upper)
MS-BTIP Replacement Tip for Martin Stacker Accumulator Support Bar
